Photo of ION T12. Click for full-size image.

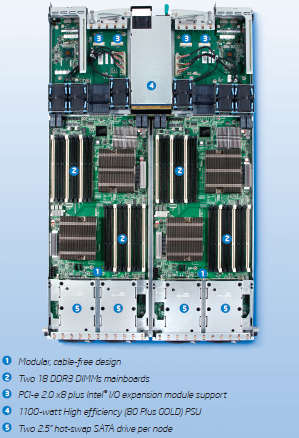

Inside Photo of ION T12. Click for full-size image.
ION T12 Server
Two 2-socket "Nehalem" nodes per 1U chassis.
The ION T12 is a 1U Rackmount DualNode Server based on the Intel SR1680MV . The T12 supports 4 Intel® 6-Core Xeon® 5600 Series processors at speeds as high as 2.93GHz and up to 288GB of ECC DDR3 1333 memory.

  • 1U Rackmount DualNode Server
  • Up to 4 Intel® 6-Core Xeon® 5600 Series processors
  • Up to 288GB of ECC DDR3 1333 memory
  • (2) x8 LP PCI Express slots
  • Server Engine LLC Pilot II w. 8MB integrated graphics
  • Intel Dual Gigabit Ethernet, per node
  • (4) SATA ports on board


In 1998, ION became the first company in the world to qualify as an Intel Authorized Solution Provider, the program now known as Intel Channel Partner Premier. 6-Core Xeon® 5600 Series processor
